ASTM標準硬度塊
專業代理美國原產ASTM標準的硬度塊，執行下列標準：
- 洛氏硬度塊：執行標準ASTM E-18；
- 表面洛氏硬度塊：執行標準ASTM E-18；
- 布氏硬度塊：執行標準ASTM E-10；
- 維氏硬度塊：執行標準ASTM E-92；
- 顯微維氏硬度塊：執行標準ASTM E-384；
- 努氏（Knoop）硬度塊: 執行標準ASTM E-384；
所有硬度塊具備檢定證書，檢定證書的出具具備下述資質（全球互認）：遵從ISO17025（全稱ISO/IEC17025:2005《檢測和校準實驗室能力的通用要求》）、ANSI（全稱美國國家標準學會American National Standards Institute）規定的流程，可以溯源到NIST（美國國家標準技術研究院National Institute of Standards and Technology），具備A2LA （美國實驗室認可協會American Association for Laboratory Accreditation）和NVLAP（全稱國家實驗室自愿認可程序National Voluntary Laboratory Accreditation Program ）的授權編號。
.jpg)
美國ASTM標準洛氏硬度塊，鋼質
|
洛氏硬度塊規格Rockwell Regular Hardness Test Block
|
|
Scale
|
Penetrator
|
Load
|
Ranges
|
Material
|
|
A Scale
|
C Diamond
|
60 Kg
|
A60 - A84
|
Steel
|
|
A Scale
|
C Diamond
|
60 Kg
|
A20 - A59
|
Brass
|
|
A Scale
|
A Diamond (Carbide)
|
60 Kg
|
A88 & up
|
Carbide
|
|
B Scale
|
1/16" Ball
|
100 Kg
|
B10 - B92
|
Brass
|
|
B Scale
|
1/16" Ball
|
100 Kg
|
B90 - B130
|
Steel
|
|
C Scale
|
C Diamond
|
150 Kg
|
All
|
Steel
|
|
D Scale
|
C Diamond
|
100 Kg
|
All
|
Steel
|
|
E Scale
|
1/8" Ball
|
100 Kg
|
All
|
Brass
|
|
F Scale
|
1/16" Ball
|
60 Kg
|
All
|
Brass
|
|
G Scale
|
1/16" Ball
|
150 Kg
|
G2.5 - G64
|
Brass
|
|
G Scale
|
1/16" Ball
|
150 Kg
|
G66 & up
|
Steel
|
|
H Scale
|
1/8" Ball
|
60 Kg
|
All
|
Brass
|
|
K Scale
|
1/8" Ball
|
150 Kg
|
All
|
Brass
|
|
L Scale
|
1/4" Ball
|
60 Kg
|
All
|
Brass
|
|
M Scale
|
1/4" Ball
|
100 Kg
|
All
|
Brass
|
|
P Scale
|
1/4" Ball
|
150 Kg
|
All
|
Brass
|
|
R Scale
|
1/2" Ball
|
60 Kg
|
All
|
Brass
|
|
S Scale
|
1/2" Ball
|
100 Kg
|
All
|
Brass
|
|
V Scale
|
1/2" Ball
|
150 Kg
|
All
|
Brass
|
|
NOTE: Aluminum Test blocks are available in "B", "E", "F", "G", "H", "K" Scales, but ranges are more limited.
|

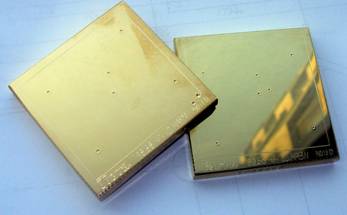

美國ASTM標準洛氏硬度塊，銅質（軟標尺標準塊HRB (<70)，HRE，HRF，HRG等）.jpg)

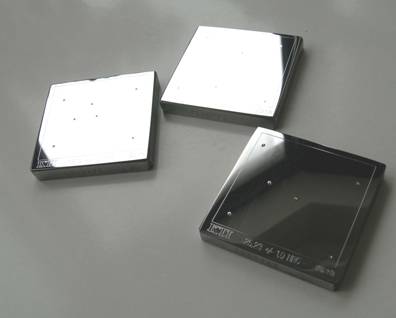

美國ASTM標準硬度塊，鋁質（軟標尺、低硬度值塊，適合航天航空有色金屬等）
|
表面洛氏硬度塊規格Rockwell Superficial Hardness Test Block
|
|
Scale
|
Penetrator
|
Load
|
Ranges
|
Material
|
|
15N Scale
|
N Diamond
|
15 Kg
|
All
|
Steel
|
|
30N Scale
|
N Diamond
|
30 Kg
|
All
|
Steel
|
|
45N Scale
|
N Diamond
|
45 Kg
|
All
|
Steel
|
|
15T Scale
|
1/16" Ball
|
15 Kg
|
All
|
Brass
|
|
30T Scale
|
1/16" Ball
|
30 Kg
|
All
|
Brass
|
|
45T Scale
|
1/16" Ball
|
45 Kg
|
All
|
Brass
|
|
15W Scale
|
1/8" Ball
|
15 Kg
|
All
|
Brass
|
|
30W Scale
|
1/8" Ball
|
30 Kg
|
All
|
Brass
|
|
45W Scale
|
1/8" Ball
|
45 Kg
|
All
|
Brass
|
|
15X Scale
|
1/4" Ball
|
15 Kg
|
All
|
Brass
|
|
30X Scale
|
1/4" Ball
|
30 Kg
|
All
|
Brass
|
|
45X Scale
|
1/4" Ball
|
45 Kg
|
All
|
Brass
|
|
15Y Scale
|
1/2" Ball
|
15 Kg
|
All
|
Brass
|
|
30Y Scale
|
1/2" Ball
|
30 Kg
|
All
|
Brass
|
|
45Y Scale
|
1/2" Ball
|
45 Kg
|
All
|
Brass
|
美國ASTM標準布氏硬度塊
|
布氏硬度塊規格Brinell Hardness Test Blocks
|
|
Part No:
|
Description
|
Range
|
|
B0250
|
Brinell 250 Load
|
All Hardness Ranges
|
|
B0500
|
Brinell 500 Load
|
All Hardness Ranges
|
|
B1000
|
Brinell 1000 Load
|
All Hardness Ranges
|
|
B1002
|
Brinell 62.5 Load
|
All Hardness Ranges
|
|
B1500
|
Brinell 1500 Load
|
All Hardness Ranges
|
|
B3000
|
Brinell 3000 Load
|
All Hardness Ranges
|
|
B3001
|
Brinell 750 Load
|
All Hardness Ranges
|
|
B3002
|
Brinell 187.5 Load
|
All Hardness Ranges
|
|
BT001
|
Telebrinell
|
All Hardness Ranges
|
.jpg)

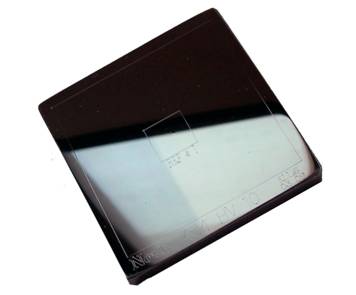

美國ASTM標準維氏硬度塊
|
維氏硬度塊規格Micro Hardness Test Blocks
|
|
Part No:
|
Description
|
Range
|
|
MV010
|
Vickers (1 gram to 1,000 gram)
|
All Ranges
|
|
MV020
|
Heavy Load Vickers (1 Kg to 50 Kg)
|
All Ranges
|
|
MK010
|
Knoop (1 gram to 1,000 gram)
|
All Ranges
|
|
Note: When ordering please specify Knoop or Vickers, Load and the Hardness Range Number you require.
|
|
